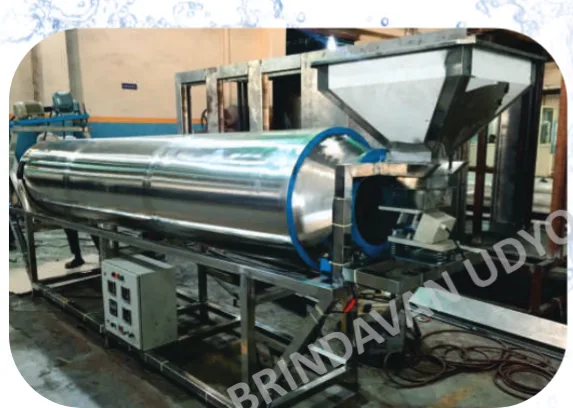

Semolina Dryer
Reduces semolina moisture to improve shelf life. Drum dryer (500 kg/hr) or pneumatic dryer (1–1.5 t/hr).
Flour Milling & Processing Machines
Roasting Section
Models: BUI-1500BUI-2000BUI-3500
Vertical roaster-mixer-dryer for roasting flour, flakes and other materials in high capacity. Three models.
Video demonstration available on request.
- CategoryFlour Milling
- Process stageConditioning
- Models3
- Capacity on wheat flour2–3 · 3–4 · 4–6
What is the Roasting Section?

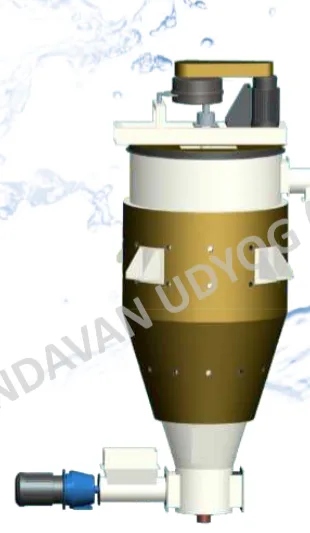

The DPG Roasting Section is a vertical roaster-mixer-dryer in which flour, flakes and a variety of other materials can be roasted in high capacity.
How it works
Product is fed into a vertical heated vessel where an agitator keeps it moving so that it roasts and dries evenly, and it is discharged by screw at the bottom.
Technical data
Roasting Section Technical Specifications
| Model | A | B | C | D | E | F | Capacity on wheat flour* |
|---|---|---|---|---|---|---|---|
| BUI-1500 | 3730 | 3490 | 960 | 1120 | 500 × 300 | 200 × 280 | 2–3 |
| BUI-2000 | 3820 | 3620 | 1220 | 1380 | 500 × 300 | 200 × 280 | 3–4 |
| BUI-3500 | 4190 | 4010 | 1600 | 1750 | 500 × 300 | 200 × 280 | 4–6 |

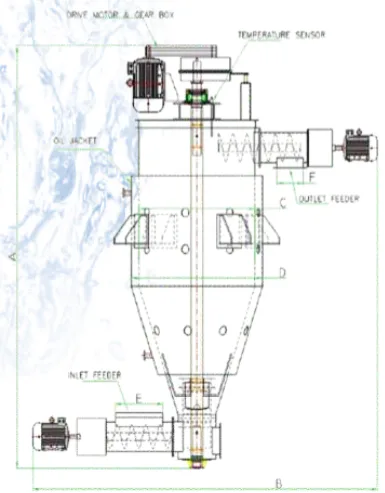

Dimensions in mm, as given in the DPG catalogue. Letters refer to the dimension drawing. *The catalogue lists this column as "Capacity on wheat flour (in kg)". Confirm the unit and basis with DPG.
| Machine type | Roasting Section |
|---|---|
| Category | Flour Milling & Processing Machines |
| Process stage | Conditioning |
| Suitable material | Wheat flour, Flakes, Gram / besan, Sattu and other materials |
| Manufacturer | DPG Milling World, New Delhi, India |
Applications
- Sattu plants
- Roasted flour and besan
- Nutri-food and ready-mix lines
Suitable Material
- Wheat flour
- Flakes
- Gram / besan
- Sattu and other materials
Key benefits
Why Choose the DPG Roasting Section
01
Roasts, mixes and dries in one vessel
02
Vertical design saves floor space
03
Three model sizes
04
Suitable for flour, flakes and more
Get the Roasting Section brochure
Download the full DPG machines catalogue, or save this page as a one-page data sheet.
Related machines
Often Used Together
Conveying

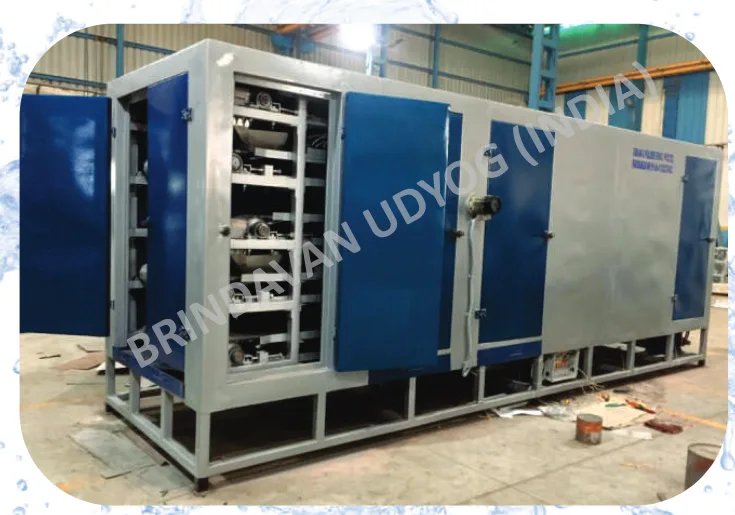

Continuous Chain Dryer
Multi-layer continuous dryer, 100–500 kg/hr, for fryums, noodles, pasta, macaroni, pellet snacks and fish and poultry feed.
Flour

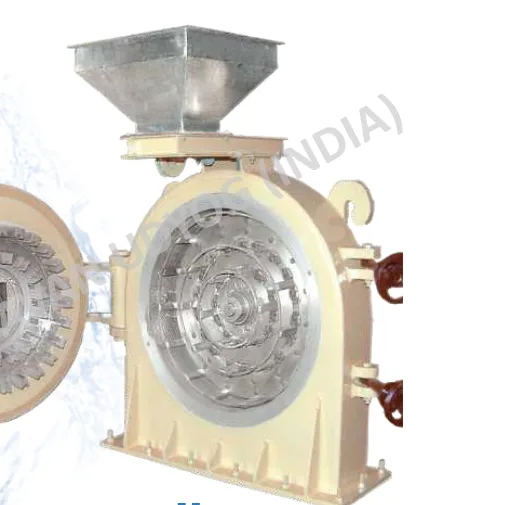

Pin Mill
MS/SS pin mill with variable-speed screw feeder, 500–10,000 kg/hr across three models, for medium-fine and coarse grinding.
FAQ
Roasting Section: Buyer Questions
What is a roasting section used for?
Vertical roaster-mixer-dryer for roasting flour, flakes and other materials in high capacity. Three models. Typical applications: Sattu plants; Roasted flour and besan; Nutri-food and ready-mix lines.
Which roasting section models does DPG offer?
The DPG catalogue lists BUI-1500, BUI-2000, BUI-3500. Capacity on wheat flour: 2–3 · 3–4 · 4–6. Full dimensions are in the specification table on this page.
What is the price of a roasting section?
The price depends on the model, capacity, construction material and any options or automation required. Use “Request Price” on this page with your requirement and DPG will send a quotation.
Which materials can the roasting section handle?
Suitable materials include wheat flour, flakes, gram / besan, sattu and other materials. For other materials, contact DPG to confirm suitability.
Does DPG provide installation and service for the roasting section?
Yes. DPG provides installation and commissioning support, spare parts and after-sales service. The scope for your order is set out in the quotation.
