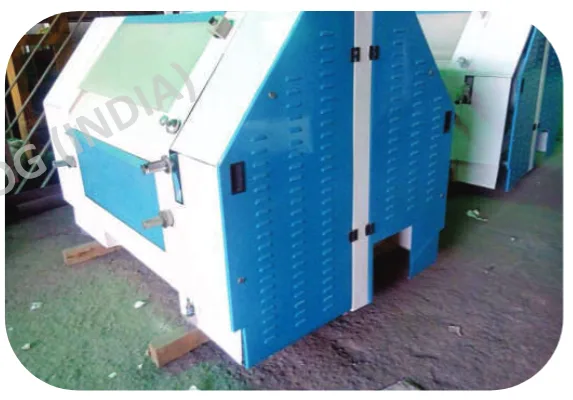

Roller Mill
Models: Cast Iron Diagonal Roller MillAutomatic Horizontal Roller Mill
Grinds cleaned grain into flour and semolina. Available as a cast-iron diagonal mill or an automatic horizontal mill.
Video demonstration available on request.
- CategoryFlour Milling
- Process stageMilling
- Models2
What is the Roller Mill?
The DPG Roller Mill grinds and crushes grain in cereal-processing plants. It is designed to produce flour and semolina from cleaned grain in flour and semolina mills. DPG offers two configurations.
How it works
Grain passes between a pair of rolls turning at different speeds. Fluted break rolls open the kernel and scrape endosperm from the bran; smooth reduction rolls grind middlings into flour. The gap between the rolls sets the grind.
Technical data
Roller Mill Technical Specifications
Cast Iron Diagonal Roller Mill
Main body made of graded casting, diagonal configuration with rolls and helical gear. Rolls engaged and disengaged manually. Complete with gear, pulley, glass and 22315K bearing.
Automatic Horizontal Roller Mill
Horizontal configuration with rolls and feed roll, engaged and disengaged by pneumatic cylinder. Complete with gear and pulley. Feed roll direct drive through gear motor with timing belt, controlled by frequency drive. Wheat inlet controlled by high- and low-level sensors. High-speed bearing 22316K.
| Machine type | Roller Mill |
|---|---|
| Category | Flour Milling & Processing Machines |
| Process stage | Milling |
| Suitable material | Wheat, Durum wheat, Maize, Other cereals |
| Manufacturer | DPG Milling World, New Delhi, India |
Applications
- Break and reduction passages in roller flour mills
- Semolina (sooji/rava) mills
- Maize mills
Suitable Material
- Wheat
- Durum wheat
- Maize
- Other cereals
Key benefits
Why Choose the DPG Roller Mill
01
Two configurations: manual cast-iron diagonal or automatic horizontal
02
Automatic version: pneumatic roll engagement and level-sensor feed control
03
Frequency drive control of the feed roll (automatic version)
04
Heavy-duty bearings: 22315K (diagonal) / 22316K (horizontal)
Get the Roller Mill brochure
Download the full DPG machines catalogue, or save this page as a one-page data sheet.
Related machines
Often Used Together
Flour
Vibro Purifier
Purifies semolina and middlings with vibro-motor driven sieves and air. Quiet operation and quick sieve changes.
Conveying
Pneumatic Conveying System
Moves bulk goods through pipelines with an air stream, the standard way to lift stocks between roller mill passages.
Flour
Stone Mill / Atta Chakki
Stone mill that grinds wheat into whole wheat atta. 250–300 kg/hr (24") and 350–450 kg/hr (30").
FAQ
Roller Mill: Buyer Questions
What is a roller mill used for?
Grinds cleaned grain into flour and semolina. Available as a cast-iron diagonal mill or an automatic horizontal mill. Typical applications: Break and reduction passages in roller flour mills; Semolina (sooji/rava) mills; Maize mills.
Which roller mill versions does DPG offer?
DPG offers Cast Iron Diagonal Roller Mill and Automatic Horizontal Roller Mill. Contact DPG with your capacity to select the right version.
What is the price of a roller mill?
The price depends on the model, capacity, construction material and any options or automation required. Use “Request Price” on this page with your requirement and DPG will send a quotation.
Which materials can the roller mill handle?
Suitable materials include wheat, durum wheat, maize, other cereals. For other materials, contact DPG to confirm suitability.
Does DPG provide installation and service for the roller mill?
Yes. DPG provides installation and commissioning support, spare parts and after-sales service. The scope for your order is set out in the quotation.
